Solid tensile necking

A steel bar develops a localized neck under prescribed extension. Compare one and three layers of solid elements through its thickness.

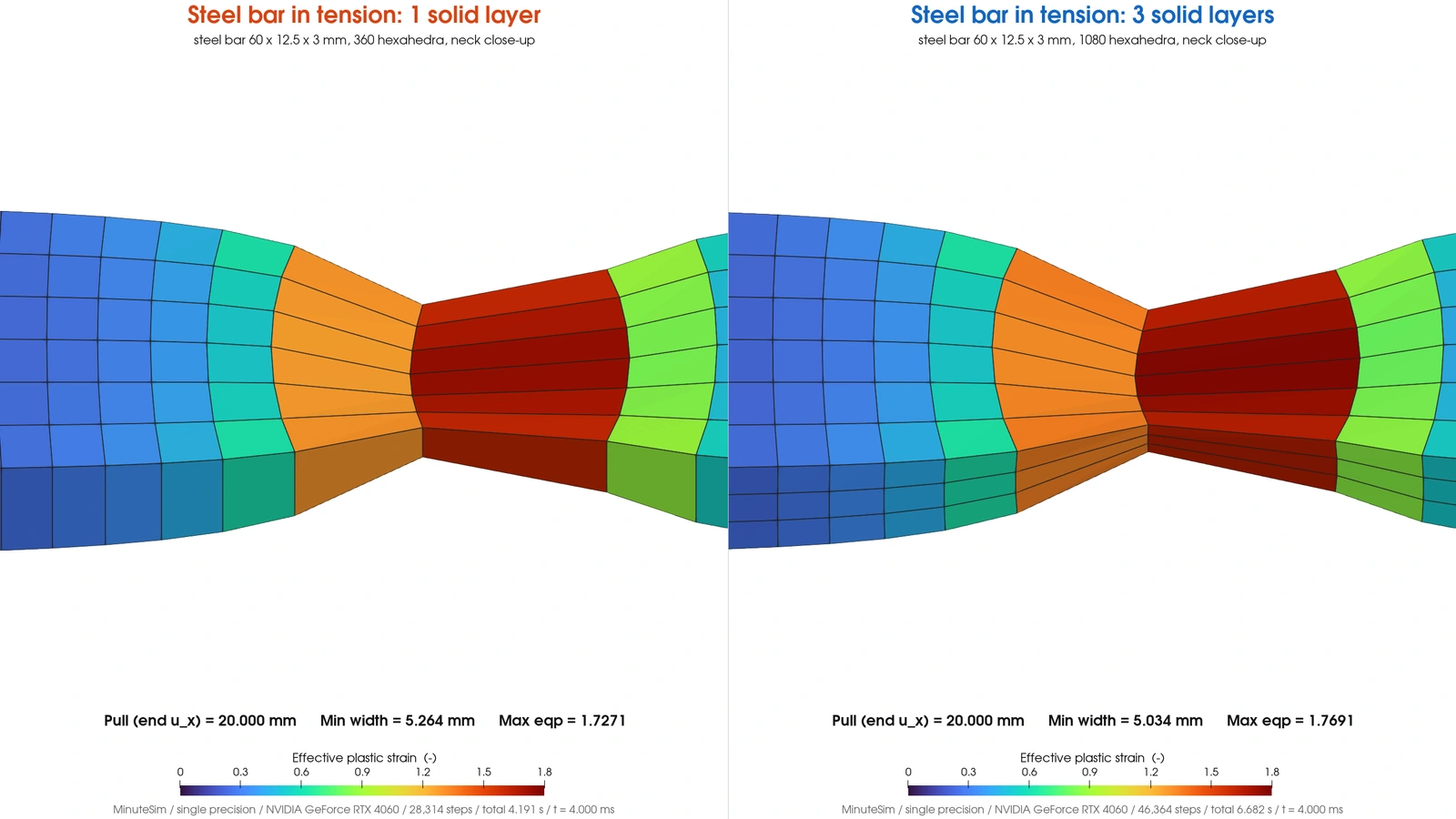

Oblique close-ups of the same central region: one solid layer on the left and three on the right. Both animations cover 0–4 ms of simulated time, with no displacement enlargement. Color shows cell-averaged effective plastic strain on the original 0–1.8 scale. The camera deliberately crops the ends of the bar.

FINAL NECK WIDTH5.26 / 5.03 mmOne / three solid layers, from 12.375 mm

Both models localize near the centre as the loaded end travels 20 mm. The three-layer model resolves deformation through the thickness with 1,080 elements, compared with 360 in the one-layer model.

Model and loading

Steel bar

The initial gauge region is 60 × 12.5 × 3 mm. A smooth 1% width reduction at mid-length seeds the neck. Both meshes use Hex8 · F-bar elements with 2 × 2 × 2 integration, arranged as 60 × 6 × 1 or 60 × 6 × 3.

Prescribed extension

One end is fixed in translation; the other is pulled 20 mm over 4 ms using a half-cosine displacement ramp. The video focuses on the neck, while the model includes the full gauge length.

Representative steel properties: E = 210 GPa, ν = 0.30 and density = 7,850 kg/m³. The tabulated plastic response follows σ = 530(0.02335 + εp)0.2 MPa, with an initial yield stress of approximately 250 MPa.

Response in the two meshes

QuantityOne layerThree layers
Solid elements3601,080
Peak axial force12,026 N12,044 N
End travel at peak force8.436 mm7.666 mm
Final neck width5.264 mm5.034 mm
Final neck thickness0.950 mm0.881 mm
Maximum effective plastic strain1.7271.769

Idealized peak-load reference

The Considère criterion gives approximately 11,952 N for uniform uniaxial plastic extension using the minimum initial area of 37.125 mm² and neglecting elastic strain. The recorded peak loads are 0.6% and 0.8% above that estimate.

This is a scale check for peak load, not validation of the neck shape or the onset displacement. The seeded imperfection and fixed end make deformation non-uniform; the idealized criterion does not reproduce those boundary conditions.

Model origin and scope

MinuteSim-generated meshes and input decks use representative geometry and material values chosen for this demonstration. Both runs reach 4 ms in single precision (FP32) on an NVIDIA GeForce RTX 4060. This is not a reproduction of a specific material test, a mesh-convergence study or a fracture prediction.

SUPPORTED · Configured capability demonstration. Results apply to the model and loading described here.
