Accuracy / Selected numerical comparisons
Results you can
compare.
Explore one mechanics problem at a time. Each comparison has its own reference, numerical measure and test conditions.
Beam theory + Solver B
Three-point bending
A centre punch bends four solid and shell specimens between two supports.
−2.6% to +2.2%Hex8 and the two shell cases, relative to the end-load reference
View analysis & comparison →
Closed-form reference
Kinematic hardening
A single element is stretched, compressed and returned through one strain cycle.
≤0.45%Maximum absolute stress difference / initial yield stress
View analysis & comparison →
Published benchmark + Solver B

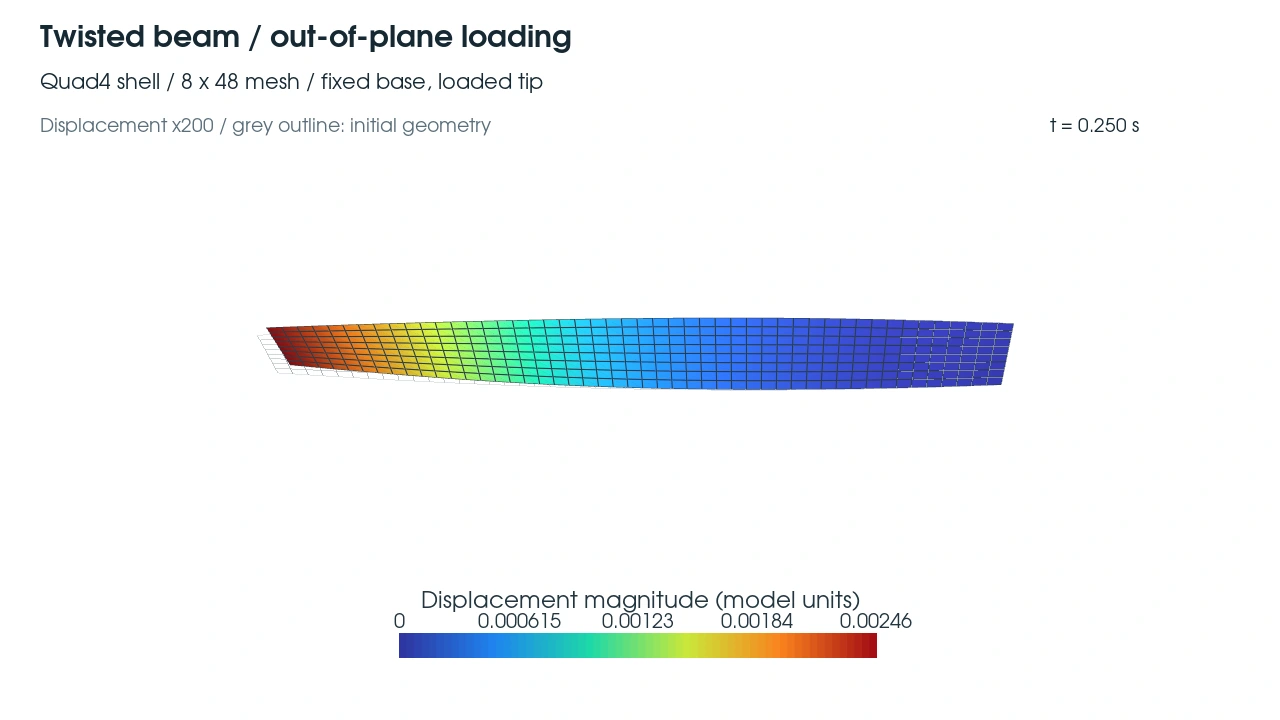

MacNeal–Harder twisted beam
A pre-twisted strip is fixed at one end and loaded in two directions at the other.
0.9983 / 0.9975Normalized tip displacement at the finest tested mesh
View analysis & comparison →
Solver A manual reference
Taylor bar impact
A metal cylinder impacts a rigid wall and mushrooms at the contacting end.
Two configurationsOne-point Tet4 / kinematic · Hex8 / isotropic
View analysis & comparison →More comparisons are in progress.
Updated shell standard-problem and flat-punch calculations are still being checked. Their results are not included in this comparison set.
What the comparisons establish
Analytical solutions, published benchmarks and solver-to-solver checks answer different questions. Results apply to the configurations shown, not every feature or workload. Runtime comparisons have their own performance conditions.
Published research and validation scope ↗
